Street Motorcycles and Parts Discussion, Questions and answers that pertain to street motorcycles and parts can be found in this forum.

"wide ass swingarm kit(dyna)

Old 12-14-2004, 04:21 PM
  #1
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default "wide *** swingarm kit(dyna)

Has anyone used the new zodiac wide *** swingarm kit to install a 250(18x8.5) wheel on a dyna? If so how was it. I just purchased the kitand I am ready to do the install.
fatdyna is offline
Old 12-15-2004, 06:50 AM
  #2
Bikerforums Linebacker

PHAT-BOY's Avatar

Join Date: May 2002
Location: Fairfax, Iowa
Posts: 1,111
Default

Welcome to the boards. I don't know of anyone that has posted anything about that particular kit since I have been here, but I guess we'll find out. Thanks for signing into the boards. Keep us updated on your progress with pics. Never seen a Dyna with a 250 on it.
PHAT-BOY is offline
Old 12-15-2004, 09:07 AM
  #3
Moderator

FatBoyRider's Avatar

Join Date: Mar 2002
Posts: 579
Default

Welcome.....Like PB say's post some pics, I've seen lot's of Softails with wide kits, but not Dynas.

good luck with it....

FBR
FatBoyRider is offline
Old 12-15-2004, 03:36 PM
  #4
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default

Thanks for the welcome. I will keep you posted with my progress (It should be interesting) I'll post some pics as I work through it.
fatdyna is offline
Old 02-16-2005, 02:05 AM
  #5
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default Pictures

I will have pics this week, still not done. This has been a bigger project than expected. I had to purchase a narrow belt kit and do some machine work but finally got the belt to clear the 250. I also had to offset rear wheel aprox. 5/8" and finally will have to make adjustments to the new fender struts.
fatdyna is offline
Old 02-16-2005, 05:49 AM
  #6
Bikerforums Linebacker

PHAT-BOY's Avatar

Join Date: May 2002
Location: Fairfax, Iowa
Posts: 1,111
Default

Cool, looking forward to seeing the progress. Looks like you've been busy.
PHAT-BOY is offline
Old 02-16-2005, 02:29 PM
  #7
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default wide *** swingarm

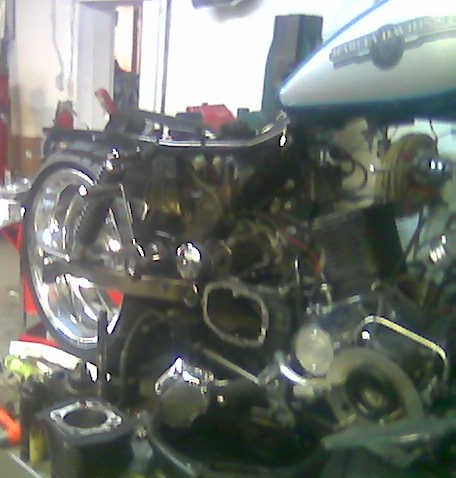

here are a couple pics ......more coming
Attached Images
File Type: jpg
File Type: jpg
fatdyna is offline
Old 02-17-2005, 07:06 AM
  #8
Biker

WooHoo!'s Avatar

Join Date: Dec 2002
Location: Meriden, CT
Posts: 525
Default

ya baby!!!! YAH! that looks hot.
WooHoo! is offline
Old 02-17-2005, 07:38 AM
  #9
Biker

Natural's Avatar

Join Date: Jan 2005
Posts: 69
Default

Damn thats sweeet!

Welcome to the forums!
Natural is offline
Old 02-17-2005, 11:29 AM
  #10
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default

More pics.......thanks for response!
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
fatdyna is offline
Old 02-17-2005, 11:32 AM
  #11
Tom
kik-kik=ka-chug/ka-chug

Join Date: Aug 2003
Location: Binghamton,NY
Posts: 278
Default

**** !!!
the tires on my car aren't that big
WOW!!!!!!!!!!!!
NIZE !!!!!!!!!!!!!
Tom is offline
Old 02-18-2005, 11:29 AM
  #12
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default Before pics

Thought I should show a couple before pics.........
Attached Images
File Type: jpg
File Type: jpg
fatdyna is offline
Old 02-18-2005, 03:37 PM
  #13
motorcyclist

harrigancan's Avatar

Join Date: Jul 2002
Location: Southern Ontario, Canada
Posts: 278
Default

Good looking bike. Your progress seems to be going well. Looking forward to seeing completed bike. Good luck.
harrigancan is offline
Old 02-21-2005, 06:24 AM
  #14
Biker

EldarKinSlayer's Avatar

Join Date: Sep 2003
Posts: 20
Default

Originally Posted by fatdyna
I will have pics this week, still not done. This has been a bigger project than expected. I had to purchase a narrow belt kit and do some machine work but finally got the belt to clear the 250. I also had to offset rear wheel aprox. 5/8" and finally will have to make adjustments to the new fender struts.
I'm not sure but believe you have to offset tranny and motor, tire must be centered
EldarKinSlayer is offline
Old 02-23-2005, 12:31 PM
  #15
Biker

Crewcab's Avatar

Join Date: Feb 2005
Posts: 15
Default Big tire kit

Have you thought of just going chain drive?
Belts are to hold up your pants!!
Crewcab is offline
Old 02-23-2005, 03:14 PM
  #16
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Thumbs up

Tried a chain with a 3/4" off set on front sprocket......didnt work! I have the wheel all on and spaced and ready to go with only a slight offset on rear wheel....shouldnt affect handling. I had to machine down my stock caliper bracket because of off set on rear wheel.......almost ready for test drive...!!!!
fatdyna is offline
Old 02-23-2005, 11:37 PM
  #17
Biker

EldarKinSlayer's Avatar

Join Date: Sep 2003
Posts: 20
Default

Originally Posted by fatdyna
Tried a chain with a 3/4" off set on front sprocket......didnt work! I have the wheel all on and spaced and ready to go with only a slight offset on rear wheel....shouldnt affect handling. I had to machine down my stock caliper bracket because of off set on rear wheel.......almost ready for test drive...!!!!
Any offset affects handling !!!!! At least that's what every reference I have says
EldarKinSlayer is offline
Old 02-26-2005, 04:17 PM
  #18
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Thumbs up

I took my bike for a test ride today. I went about 20 miles (BBBBBBBRRRRRRRRRRRRR 21 degrees)
It handled excellent...no pulling to one side or anything. I let go of the bars at 45 mph and it tracked nice and straight.........all I have to do now is finish with my rear fender and give it a paint job and I'm ready to roll........
fatdyna is offline
Old 02-28-2005, 10:25 AM
  #19
Biker

WooHoo!'s Avatar

Join Date: Dec 2002
Location: Meriden, CT
Posts: 525
Default

21 degrees????...the steering bearings were probably frozen, that's why it tracked straight LOL!
WooHoo! is offline
Old 03-06-2005, 05:02 PM
  #20
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Thumbs up

Over 100 miles and no problems.......everything is running smooth.....
fatdyna is offline
Old 03-19-2005, 04:41 PM
  #21
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default

Here is picture with fender all mocked up and ready for body work and paint
Attached Images
File Type: jpg
fatdyna is offline
Old 03-19-2005, 05:03 PM
  #22

Join Date: Feb 2002
Location: Philadelphia, PA
Posts: 1,268
Default

That's sweet looking man. I bet you can't wait until the body and paint work is done.
Mongo is offline
Old 03-21-2005, 06:14 AM
  #23
Biker

WooHoo!'s Avatar

Join Date: Dec 2002
Location: Meriden, CT
Posts: 525
Default

so cool. makes me wonder why the Motor Company doesn't offer that as an option.
WooHoo! is offline
Old 03-29-2005, 03:20 PM
  #24
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default

As usual plans change............. new fender pics
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
fatdyna is offline
Old 03-30-2005, 03:31 AM
  #25
Tom
kik-kik=ka-chug/ka-chug

Join Date: Aug 2003
Location: Binghamton,NY
Posts: 278
Default

is that a lite under the fender, showing thru ???
or a glow in the dark thingy???
interesting
Tom is offline
Old 03-30-2005, 05:06 AM
  #26
Biker

Junkyard's Avatar

Join Date: Mar 2004
Location: Flanders, NJ
Posts: 148
Default

Very cool! How did you cut the letters in the fender? Looks like that was a bitch.
Junkyard is offline
Old 03-30-2005, 03:27 PM
  #27
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Default

Tom, thats a light recessed in the fender with a piece of polished aluminum for a reflective backing plate........Junkyard I used a plasma cutter for the lettering.............wasnt bad cutting!!!
fatdyna is offline
Old 03-31-2005, 04:59 AM
  #28
Biker

Junkyard's Avatar

Join Date: Mar 2004
Location: Flanders, NJ
Posts: 148
Default

Ahhh, a plasma cutter. Very cool. That's one toy I would love to own!
Junkyard is offline
Old 04-09-2005, 05:58 PM
  #29
Biker

Natural's Avatar

Join Date: Jan 2005
Posts: 69
Default

The company I work for makes plasma cutters and water jet machines. Nice work by whatever you used for sure. I setup and run the CNC machines that make the plasma tips for some of our machines... hoping it was one of ours as I'm told we're the best in the business in Plasma!
Natural is offline
Old 04-13-2005, 04:34 PM
  #30
Biker
Thread Starter

fatdyna's Avatar

Join Date: Dec 2004
Posts: 32
Talking

Plasma cutters and saw-z-all two of mans greatests inventions.................
fatdyna is offline
